AC100 - 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control

Name: AC100 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control
Brand: JIBANG
Price: 1 USD

China AC100 - 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control factory

Brand Name : JIBANG

Model Number : DMX8604

Certification : CE/ROHS/EMC

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000 pieces per month

Delivery Time : 3-15 working days

Packaging Details : 1pcs/Carton Carton Size:L113*W112*H50mm Weight: 225g

Name : LED Dimmer Switch

Power Supply : AC100-240V

Output Signal : DMX512/1990

Channels : 4CH

Appearance : 86*86 Glass Panel

Working Temp. : -30~55℃

Control Mode : Synchronous Control

Warranty : 3 Years

Dimension : 86mm*86mm*36mm

G.W. : 225g

Contact Now

Four Channels DMX512 Touch Panel Controller LED Dimmer Switch DMX8604

Model NO.: DMX8604

Sumerize:

DMX8604 is a LED dimmer switch that can be used for DMX dimming controlling. It is input voltage is AC100-240V which can match daily electricity.

It can be used as a DMX master controller while you need to control the RGBW LED lights synchronously. Please read the manual carefully before using.

Features:

1, Optional DMX 512 wired output, control DMX lamps and lanterns.

2, The rst t - PWM dimming technology has almost perfect dimming and toning performance.

3, Supporting multi-connection control of multiple panels.

4, Beautiful appearance design, simple and fashionable.

5, Can be used to adjust the color and brightness of RGBW LED lights.

Technical Specifications:

Model No.	DMX8604
Input Voltage	AC100-240V
Output Signal	DMX512/1990
Channels	4CH Control
Control Mode	Synchronous control
Working Temperature	-30~55℃
Product Size	L86W86H36mm
Gross Weight	225g

Product Size and Installation:

AC100 - 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control

Specifications of LED Dimmer Switch Series:

Model No.	Input Voltage	Output Signal	Control Channels	Max Current Load	Max Output Power	Control Type
DM8088	AC90-250V	TRIAC	N/A	2.5A	630W	Know Switch
DW8080	Passive	0/1-10V	N/A	N/A	N/A	Know Switch
DL8601	DALI Power	DALI	1CH	N/A	N/A	Touch Panel
DL8602	DALI Power	DALI	2CH	N/A	N/A	Touch Panel
DL8603	DALI Power	DALI	3CH	N/A	N/A	Touch Panel
DL8604	DALI Power	DALI	4CH	N/A	N/A	Touch Panel
DMX8601	AC100-240V	DMX512	1CH	N/A	N/A	Touch Panel
DMX8602	AC100-240V	DMX512	2CH	N/A	N/A	Touch Panel
DMX8603	AC100-240V	DMX512	3CH	N/A	N/A	Touch Panel
DMX8604	AC100-240V	DMX512	4CH	N/A	N/A	Touch Panel

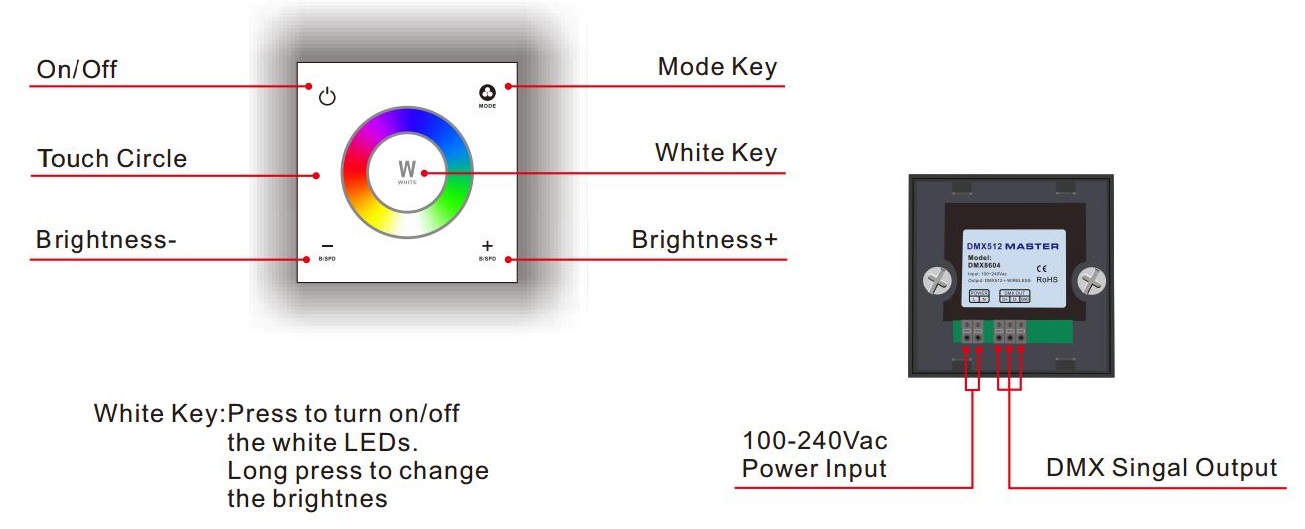

Operating Instructions:

AC100 - 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control

1, ON/OFF key: Turn ON / OFF the touch panel.

2, Touch Circle: Touch anywhere to reach the color temperature you need.

3, Brightness +/- : Press the two keys to adjust the brightness freely.

Speed +/- : Press the two keys to adjust the runing speed freely.

4, Mode Key : Press this key to switch the different presset modes directly.

5, White Key: Get to the natural white directly, or cancel it.

Product Online:

AC100 - 240V DMX512 Touch Panel LED Dimmer Switch For 4CH RGBW LED Lights Control

FAQ: (Why you choose us?)

1. How about your goods’ quality?

100% burn-in tests, full-round tests.

All products approved by CE RoHS, some products have got SAA,UL certificates.

2. What is your warranty? And if I got wrong ones, how will you do with it?

3 years. If any wrong, we will replace in your next order, or refund.

3. What is your minimum order quantity?

The MOQ is 1pcs.

4. Which payment terms you can accept?

We accept T/T, Western Union, Money Gram, Paypal, etc.

5. What are the shipping ways you can offer?

By air/sea/land, from Shanghai port, Hongkong, Shenzhen.

6. How about your delivery time?

3-7 working days according the order.

7. Can you make OEM?

Of course, OEM ODM provided.

More information, please feel free to contact us.
